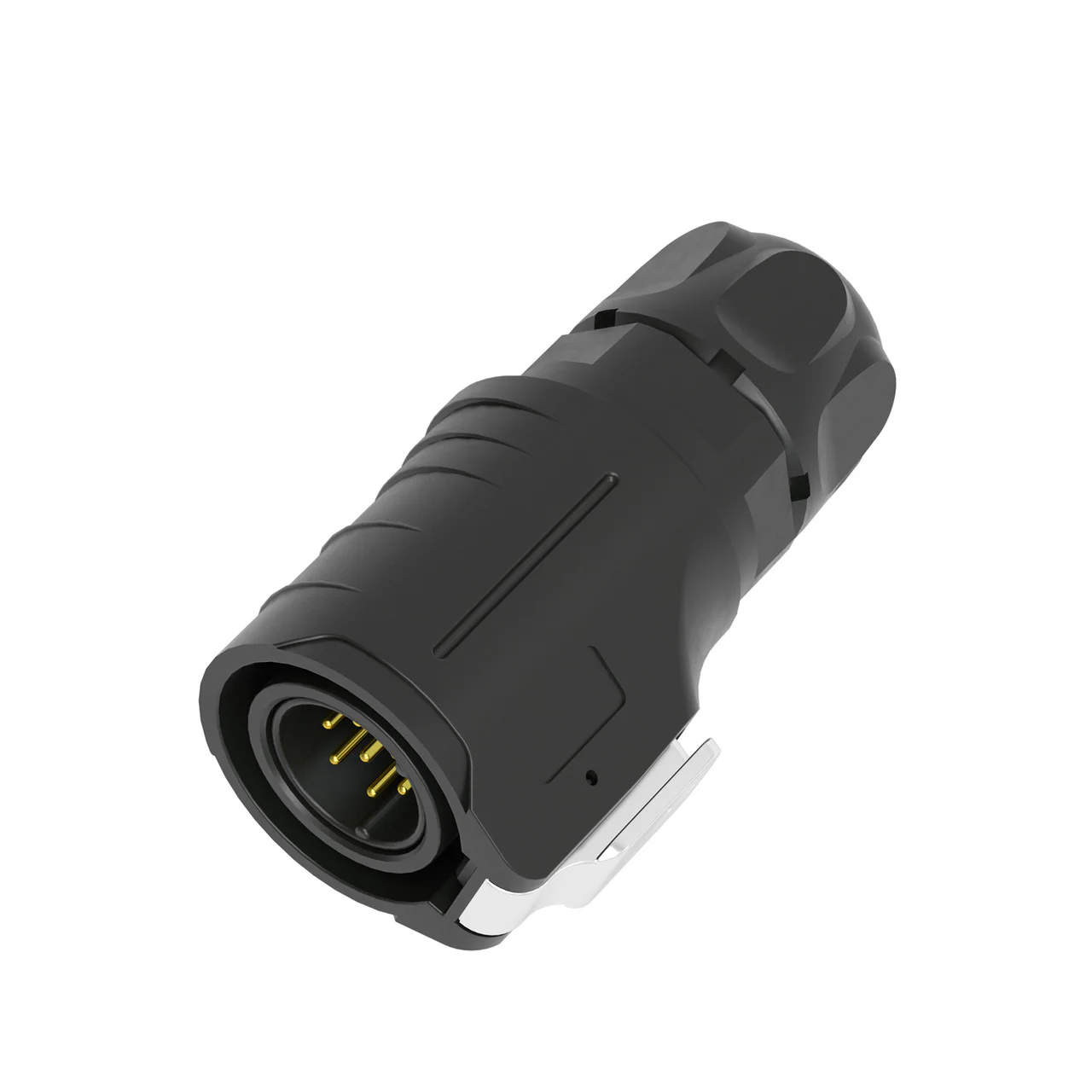

Renogy LP16 Terminator Plug (7-Pin)
Description

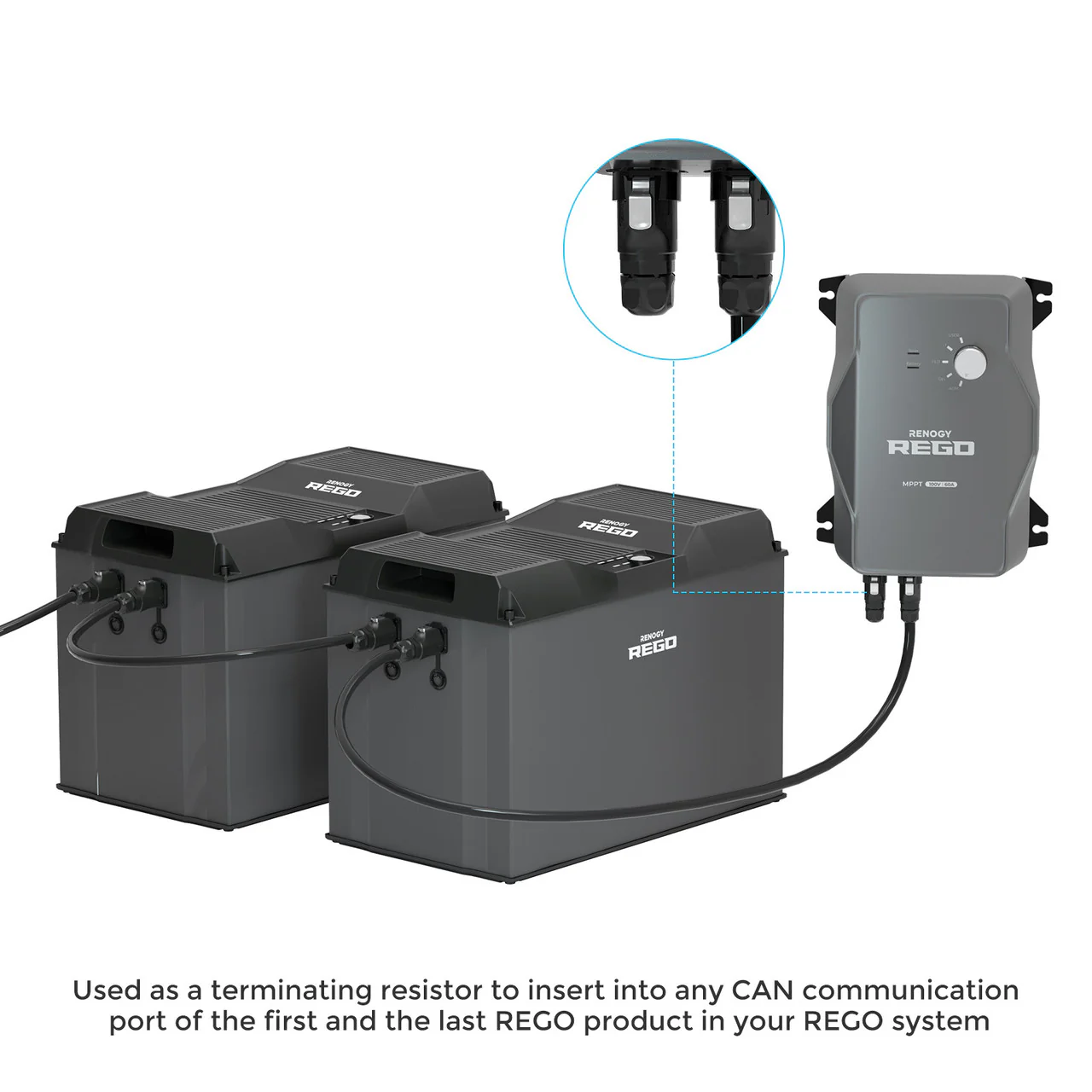

The 7 Pin LP16 Terminator Plug is used as a terminating resistor to insert into any redundant CAN communication ports in your REGO system, weakening the reflection and echo after the communication signal reaches the transmission end, effectively enhancing the system strength of the communication signal. The quick plug design allows simple, fast, and stable operation. Contact core using 3um gold plating guaranteeing stable and efficient electrical performance all the time. IP65-rated outdoor waterproof performance satisfies the high-quality performance required under harsh situations.
If you have any questions regarding this product, please submit a case!
Key Features
- 【Specially Designed to Work with Renogy REGO Products】This 7 Pin LP16 Terminator Plug is used as a terminating resistor to insert into any redundant CAN communication ports in your REGO system. Used to weaken the reflection and echo after the communication signal reaches the transmission end, effectively enhances the system strength of the communication signal.
- 【Plug&Play Operation】The quick plug design allows one-hand plug/unplug, just tap to release, ensuring simple, fast, and stable operation and connection.

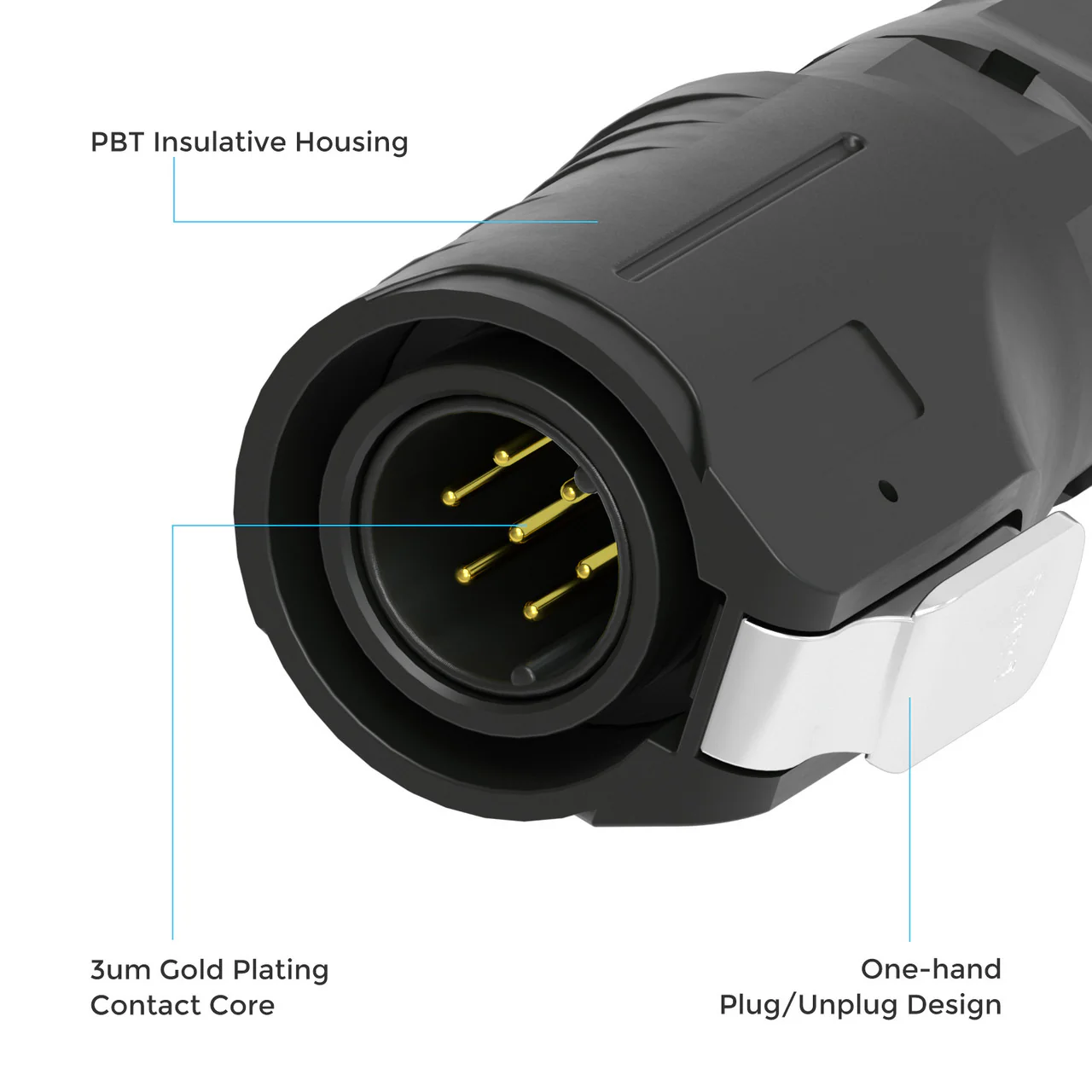

- 【Excellent Performance】The contact core of the terminator plug uses 3um gold plating guaranteeing stable and efficient electrical performance all the time.
- 【Durable Design 】The terminator plug adopts high-strength structural materials, a pressure-resistant structure design, can withstand greater vibration and shock, good insulation, low creep, and anti-aging. IP65-rated outdoor waterproof performance satisfies the high-quality performance required under harsh situations.
- 【Safety and Environment Friendly】All materials of the terminator plug are RoHS compliant, preventing the risks posed to human health and the environment.
Package Includes
|
LP16 Terminator Plug (7-Pin)
1 x
|
| Specifications | |
|---|---|
| Rated Current:5A | Rated Voltage:250V AC |
| Contact Diameter:φ1.0mm*7 | Rated Power Of Resistance:1/4W |
| Resistance Value:120Ω | Life Cycle:≥500 times |
| Temperature rise:5A Per contact at 30K | Rated Temperature:'-25°C - 85°C/-4℉-185℉ |
| Dimensions:54x23x30mm/2.13x0.9x1.18inch | Weight:0.02lbs/0.05lbs |
| Certification:TUV、UL、CQC、ROHS | Warranty:1year |
 |
